PyQGIS二次开发：样式美化

QSS文件加载工具类，在utils包中创建文件qss_loader.py

qss_loader.py

from PyQt5.QtCore import QFile


class QSSLoader:
    def __init__(self, path: str) -> None:
        self._path = path

    def load(self) -> str:
        f = QFile(self._path)
        f.open(QFile.ReadOnly | QFile.Text)
        stylesheet = f.readAll()
        return stylesheet.data().decode("utf-8")

单一主题

样式主题文件写入到qss文件中，qss类似早期版本的css，创建ui/style/light.qss目录及文件。

在main.py中新增load_qss()方法

main.py

from utils import QSSLoader

class PyQgisSEApp(QMainWindow, Ui_MainWindow):
    def __init__(self, app: QgsApplication):
        super(PyQgisSEApp, self).__init__()
        self.app = app
        self.ui = Ui_MainWindow()
        self.ui.setupUi(self)

        # 装载模块
        GUI.GUIPreview.load_preview(self)

        # 加载主题文件
        self.load_qss()

    def load_qss(self):
        # 切换主题文件
        qss = QSSLoader(f"{os.path.dirname(sys.argv[0])}/ui/style/light.qss").load()
        self.ui.centralwidget.setStyleSheet(qss)

主题文件light.qss内容如下：

QWidget, QFrame {
  background-color: #fff;
  border: none;
}
QTabWidget, QLabel, QToolButton, QPushButton, QLineEdit, QRadioButton {
  font-family: 'Microsoft YaHei', 'PingFang SC','SimSun','Arial', sans-serif;
}
/* 输入框 */
QLineEdit {
  border-style:none;
  padding:2px;
  border-radius: 3px;
  border: 1px solid rgb(224, 224, 230);
}
QLineEdit:focus {
  border: 1px solid #36ad6a;
}

/* Tab样式 */
QTabWidget#tabWidget {
  background-color: white;
}
QTabBar {
  font-size: 9.5pt;
  qproperty-drawBase: 0;
}
QTabBar::tab {
  border: none;
  margin: 3px 10px 0px 10px;
  width: 66px;
  padding: 5px 0px;
  border-bottom: 2px solid #FFFFFF;
}
QTabBar::tab:selected, QTabBar::tab:hover {
  background-color:#FFFFFF;
}
QTabBar::tab:selected {
  border-color: #18a058;
  font-weight: 500;
}

/*       顶部工具栏样式        */
QFrame#frame_prev_top {
  border-top: 1px solid rgba(228,228,228,1);
}

QFrame#frame_prev_top {
  padding: 2px;
  background-color: rgb(255, 255, 255);
  border-bottom: 1px solid rgba(228,228,228,1);
}

QFrame#frame_prev_tools {
  padding-left: 6px;
}

/* 工具按钮 */
QToolButton:hover {
	background-color: rgba(46, 51, 56, 0.09);
}
QToolButton:checked {
	background-color: rgba(46, 51, 56, 0.09);
}
QToolButton:pressed {
	background-color: rgba(46, 51, 56, 0.13);
}
QToolButton {
	padding: 2px;
	border-radius: 4px;
	margin-right: 4px;
	margin-top: 2px;
	margin-bottom: 2px;
}

/*       中间区域左侧样式        */
/* 图层管理上方 */
QFrame#frame_prev_layers_mgr, QFrame#frame_prev_layers_mgr QToolButton {
  background-color: #F7F8FA;
}

QFrame#frame_prev_layers_mgr {
  border: 0px solid;
  border-bottom-width: 1px;
  border-bottom-color: #EBECF0;
}
QFrame#frame_prev_layers {
  border: 0px solid;
  border-right-width: 1px;
  border-right-color: #EBECF0;
}

/* 图层管理上方按钮样式 */
QFrame#frame_prev_layers_mgr QToolButton  {
  margin: 4px 0px;
  margin-right: 4px;
}

QFrame#frame_prev_layers_mgr QToolButton:hover {
  background-color: #EBECF0;
}
QFrame#frame_prev_layers_mgr QLabel {
  font-size: 9pt;
  margin-left: 4px;
  background-color: #F7F8FA;
}

/*       中间区域右侧样式        */
QFrame#frame_prev_map_mgr {
  border: 0px solid;
  border-bottom-width: 1px;
  border-bottom-color: #EBECF0;
  padding-left: 4px;
}

/*       底部区域样式        */
QFrame#frame_prev_bottom {
  border: 0px solid #EBECF0;
  border-top-width: 1px;
  background-color: white;
  padding: 1px 10px;
  border-bottom: none;
}
QLineEdit#edit_coords_value, QLineEdit#edit_coords_value_inversion {
  width: 100px;
  margin: 2px 0px;
}
QLineEdit#edit_coords_value, QLineEdit#edit_coords_value_inversion {
  width: 140px;
  margin: 2px 0px;
}

最终效果如下：

夜间模式

创建ui/style/light/theme.qss和ui/style/dark/theme.qss两个文件，分别存放白天和夜间主题。

修改main.py代码

main.py

class PyQgisSEApp(QMainWindow, Ui_MainWindow):
    def __init__(self, app: QgsApplication):
        super(PyQgisSEApp, self).__init__()
        self.app = app
        self.ui = Ui_MainWindow()
        self.ui.setupUi(self)
        # 装载模块
        GUI.GUIPreview.load_preview(self)

        # 加载主题文件
        self.settings = QSettings('PyQgisSEApp')
        self.theme = 'light'
        self.load_qss()

    def load_qss(self):
        # 从配置中加载主题选项
        self.theme = self.settings.value('theme', 'light')
        self.switch_theme()

    def slot_switch_theme(self):
        """
        切换主题插槽，用于绑定按钮
        """
        self.theme = 'dark' if self.theme == 'light' else 'light'
        # 写入配置
        self.settings.setValue('theme', self.theme)
        self.switch_theme()

    def switch_theme(self):
        # 切换主题文件
        file = f"{os.path.dirname(sys.argv[0])}/ui/style/{self.theme}/theme.qss"
        qss = QSSLoader(file).load()
        self.ui.centralwidget.setStyleSheet(qss)

        # 数据预览页面主题切换
        GUI.GUIPreview.switch_theme(self, self.theme)

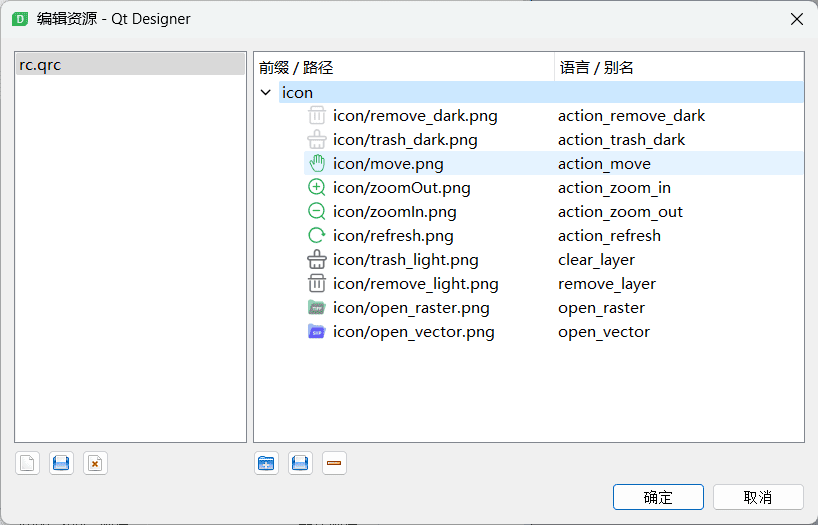

预览页面添加如下代码，部分组件样式需要代码更改，资源文件自行添加

preview.py

def switch_theme(main, theme):
    canvas_color = Qt.white if main.theme == 'light' else QColor(30, 31, 34)
    main.preview_canvas.setCanvasColor(canvas_color)

    if 'dark' == theme:
        main.layerTreeView.setStyleSheet("background-color: rgb(30, 31, 34)")
        main.ui.button_prev_clear.setIcon(QIcon(":/icon/action_trash_dark"))
        main.ui.button_prev_remove.setIcon(QIcon(":/icon/action_remove_dark"))
    else:
        main.layerTreeView.setStyleSheet("background-color: white")
        main.ui.button_prev_clear.setIcon(QIcon(":/icon/action_trash_light"))
        main.ui.button_prev_remove.setIcon(QIcon(":/icon/action_remove_light"))

主题文件dark/theme.qss内容如下：

QWidget, QFrame {
  background-color: #2B2D30;
  border: none;
}
QTabWidget, QLabel, QToolButton, QPushButton, QLineEdit, QRadioButton {
  font-family: 'Microsoft YaHei', 'PingFang SC','SimSun','Arial', sans-serif;
  color: #FFF;
}

QSplitter {
  background-color: #1E1F22;
}

/* 输入框 */
QLineEdit {
  border-style:none;
  padding:2px;
  border-radius: 3px;
  color: white;
  border: 1px solid rgb(224, 224, 230);
  background-color: rgba(255, 255, 255, 0.1);
  border: 1px solid rgba(255, 255, 255, 0.1);
}
QLineEdit:focus {
  border: 1px solid #36ad6a;
}

/* Tab样式 */
QTabWidget#tabWidget {
  background-color: #2B2D30;
  border: none;
}
QTabBar {
  font-size: 9.5pt;
  qproperty-drawBase: 0;
}
QTabBar::tab {
  border: none;
  margin: 3px 10px 0px 10px;
  width: 66px;
  padding: 5px 0px;
  color: #FFF;
  border-bottom: 2px solid #2B2D30;
}
QTabBar::tab:selected, QTabBar::tab:hover {
  background-color:#2B2D30;
}
QTabBar::tab:selected {
  border-color: #18a058;
  font-weight: 500;
}

/*       顶部工具栏样式        */
QFrame#frame_prev_top {
  border-top: 1px solid #1E1F22;
}

QFrame#frame_prev_top {
  padding: 2px;
  background-color: #2B2D30;
  border-bottom: 1px solid #1E1F22;
}

QFrame#frame_prev_tools {
  padding-left: 6px;
}

/* 工具按钮 */
QToolButton:hover {
	background-color: #4E5157;
}
QToolButton:checked {
	background-color: #4E5157;
}
QToolButton:pressed {
	background-color: #4E5157;
}
QToolButton {
	padding: 2px;
	border-radius: 4px;
	margin-right: 4px;
	margin-top: 2px;
	margin-bottom: 2px;
}

/*       中间区域左侧样式        */
/* 图层管理上方 */
QFrame#frame_prev_layers {
  background-color: #1E1F22;
}
QFrame#frame_prev_layers_mgr, QFrame#frame_prev_layers_mgr QToolButton {
  background-color: #2B2D30;
}

QFrame#frame_prev_layers_mgr {
  border: 0px solid #1E1F22;
  border-right-width: 1px;
  border-right-color: #1E1F22;
  border-bottom-width: 1px;
  border-bottom-color: #1E1F22;
}

/* 图层管理上方按钮样式 */
QFrame#frame_prev_layers_mgr QToolButton  {
  margin: 4px 0px;
  margin-right: 4px;
}

QFrame#frame_prev_layers_mgr QToolButton:hover {
  background-color: #4E5157;
}
QFrame#frame_prev_layers_mgr QLabel {
  font-size: 9pt;
  margin-left: 4px;
  background-color: #2B2D30;
}

/*       中间区域右侧样式        */
QFrame#frame_prev_map_mgr {
  border: 0px solid;
  border-bottom-width: 1px;
  border-bottom-color: #1E1F22;
  padding-left: 4px;
}

/*       底部区域样式        */
QFrame#frame_prev_bottom {
  border: 0px solid #1E1F22;
  border-top-width: 1px;
  background-color: #2B2D30;
  padding: 1px 10px;
  border-bottom: none;
}
QLineEdit#edit_coords_value, QLineEdit#edit_coords_value_inversion {
  width: 100px;
  margin: 2px 0px;
}
QLineEdit#edit_coords_value, QLineEdit#edit_coords_value_inversion {
  width: 140px;
  margin: 2px 0px;
}

夜间模式效果如下：
