Naive UI Admin搭建流程：BasicTable 表格组件

对 Data Table 组件进行封装，效果如下：

1、可实现基础的表格数据和分页信息的展示

2、可调整表格的样式，选择展示的列

3、可实现对列的操作功能

4、实现单选和多选操作

5、实现可编辑单元格，整行编辑操作

下载基础代码

基础代码下载地址：

https://wwab.lanzoue.com/iRUSW1fj5fcd

BasicTable代码下载

或者从Git仓库中直接拷贝代码，推荐！

添加 BasicTable 组件

打开项目，找到src目录，需要导入的文件及位置如下：

Table ==> src/components/
hooks/event ==> src/hooks
settings/componentSetting.js ==> src/settings/
utils/domUtils.js ==> src/utils/
directives => src/

BasicTable组件中使用到了基础Naive UI组件，这里需要增量引入：

哪个组件打印警告信息，添加哪个组件即可。

import * as NaiveUI from 'naive-ui';

const naive = NaiveUI.create({
  components: [
    NaiveUI.NSwitch,
    NaiveUI.NDataTable,
    NaiveUI.NCheckboxGroup,
    NaiveUI.NPopover
],
});
export function setupNaive(app) {
  app.use(naive);
}

安装vueuse依赖

npm i @vueuse/core

基础使用

分页设置

找到src/settings/componentSetting，修改其中的字段名，和后端返回的分页信息对应

export default {
  table: {
    apiSetting: {
      // 当前页的字段名
      pageField: 'current',
      // 每页数量字段名
      sizeField: 'size',
      // 接口返回的数据字段名
      listField: 'records',
      // 接口返回总页数字段名
      totalField: 'pages',
      // 接口返回总数据个数
      itemCountField: 'total',
    },
    //默认分页数量
    defaultPageSize: 10,
    //可切换每页数量集合
    pageSizes: [5, 10, 20, 30, 40],
  },
};

表格列设置

通过设置列的属性可以显示对应字段，以及列的样式信息等

columns.js

import { NSwitch } from "naive-ui";
import { h } from "vue";
import { DeleteOutlined, EditOutlined } from '@vicons/antd'

export const createListColumns = ({ currentIndex, switchStatus }) => {
  return [
    {
      type: 'selection',
      key: 'selection'
    },
    {
      title: '序号',
      key: 'index',
      width: 60,
      render: (...[, record]) => {
        return currentIndex() + record + 1;
      },
    },
    {
      title: '医院名称',
      key: 'hosname',
    },
    {
      title: '医院编号',
      key: 'hoscode',
    },
    {
      title: 'api基础路径',
      key: 'apiUrl',
      width: 200,
    },
    {
      title: '联系人姓名',
      key: 'contactsName',
    },
    {
      title: '联系人手机',
      key: 'contactsPhone',
    },
    {
      title: '状态',
      key: 'status',
      render(row) {
        return h(NSwitch, {
          value: row.status === 1 ? true : false,
          onClick: () => switchStatus(row),
        });
      },
    },
  ]
}

export function createActions(record, {handleEdit, handleDelete}) {
    return [
      {
        label: '删除',
        type: 'error',
        // 配置color会覆盖type
        color: 'red',
        icon: DeleteOutlined,
        onClick: handleDelete.bind(null, record)
      },
      {
        label: '编辑',
        type: 'primary',
        icon: EditOutlined,
        onClick: handleEdit.bind(null, record)
      }
    ];
}

页面使用

<template>
  <n-card :bordered="false" class="proCard table">
    <BasicTable
        :columns="columns"
        :request="loadDataTable"
        @fetch-success="fetchSuccess"
        @update:checked-row-keys="onCheckedRow"
        ref="actionRef"
        :actionColumn="actionColumn"
        :row-key="(row) => row.id"
        :scroll-x="1000">
      <!-- 表格上方左侧的位置 -->
      <template #tableTitle>
        <n-space>
          <!-- 批量删除 -->
          <n-button strong secondary type="error" @click="removeRows">
            批量删除
          </n-button>
        </n-space>
      </template>
    </BasicTable>
  </n-card>
</template>
<script setup>
import { h, reactive, ref, unref } from 'vue'
import { getHospSetPageList } from '@/api/hospset'
import { BasicTable, TableAction } from '@/components/Table'
import { createListColumns, createActions } from './columns';
import { useDialog, useMessage } from 'naive-ui';

const dialog = useDialog()
const message = useMessage()
const actionRef = ref(null)
const currentIndex = ref(1)
// 选中的行
const selections = ref([]);

// 表格列属性
const columns = createListColumns({
  currentIndex() {
    return unref(currentIndex);
  },
  switchStatus: async (row) => {
    const { id, status } = row;
    const update = status === 1 ? 0 : 1;
    try {
      // 切换状态
      row.status = update;
    } catch (error) {
      row.status = status
    }
  },
});

const actionColumn = reactive({
  width: 140,
  title: '操作',
  key: 'action',
  fixed: 'right',
  align: 'center',
  render(record) {
    return h(TableAction, {
      showLabel: false,
      actions: createActions(record, { handleEdit, handleDelete }),
    });
  },
});

// 数据请求
const loadDataTable = async (res) => {
  return await getHospSetPageList({ ...res });
}
function fetchSuccess() {
  // 数据请求成功，设置索引
  currentIndex.value =
    (actionRef.value.pagination.current - 1) *
    actionRef.value.pagination.pageSize;
}
// 表格选中行事件
function onCheckedRow(rowKeys) {
  selections.value = rowKeys;
}

// 刷新表格
function reloadTable() {
  actionRef.value.reload();
}

// 编辑事件
const handleEdit = (record) => { }

// 删除事件
const handleDelete = (record) => {
  dialog.info({
    title: '提示',
    content: `您想删除：${record.hosname}`,
    positiveText: '确定',
    negativeText: '取消',
    onPositiveClick: async () => {
      await deleteHospSet(record.id)
      reloadTable();
    },
    onNegativeClick: () => { },
  });
}

// 批量删除事件
const removeRows = () => {
  const ids = unref(selections);
  if (ids.length === 0) {
    message.warning('请至少勾选一列');
    return;
  }
  dialog.warning({
    title: '提示',
    content: `您要删除: ${ids}`,
    positiveText: '确定',
    negativeText: '取消',
    onPositiveClick: async () => {
      await batchRemoveHospSet(ids);
      reloadTable();
    },
    onNegativeClick: () => {},
  });
}
</script>

行列编辑

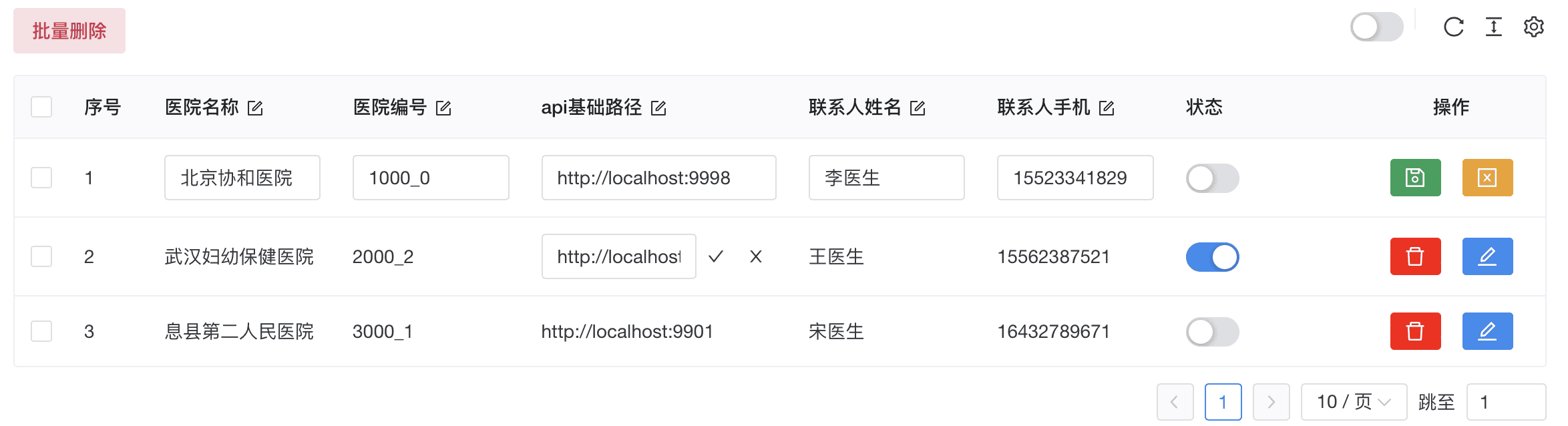

实现每个单元格编辑或者整行编辑，效果如图：

分页设置

找到src/settings/componentSetting，修改其中的字段名，和后端返回的分页信息对应

export default {
  table: {
    apiSetting: {
      // 当前页的字段名
      pageField: 'current',
      // 每页数量字段名
      sizeField: 'size',
      // 接口返回的数据字段名
      listField: 'records',
      // 接口返回总页数字段名
      totalField: 'pages',
      // 接口返回总数据个数
      itemCountField: 'total',
    },
    //默认分页数量
    defaultPageSize: 10,
    //可切换每页数量集合
    pageSizes: [5, 10, 20, 30, 40],
  },
};

表格列设置

通过设置列的属性可以显示对应字段，以及列的样式信息等

edit: true：开启编辑功能,
editRule: true：编辑时的校验规则，默认true为非空校验,
editComponent: 'NInput'：编辑时渲染的组件类型,

columns.js

import { NSwitch } from "naive-ui";
import { h } from "vue";
import { DeleteOutlined, EditOutlined, SaveOutlined, CloseSquareOutlined } from '@vicons/antd'

const reg_tel = /^(13[0-9]|14[01456879]|15[0-35-9]|16[2567]|17[0-8]|18[0-9]|19[0-35-9])\d{8}$/

export const createListColumns = ({ switchStatus }) => {
  return [
    {
      type: 'selection',
      key: 'selection'
    },
    {
      title: '医院名称',
      key: 'hosname',
      edit: true,
      editRule: true,
      editComponent: 'NInput',
    },
    {
      title: '医院编号',
      key: 'hoscode',
      edit: true,
      editRule: true,
      editComponent: 'NInput',
    },
    {
      title: 'api基础路径',
      key: 'apiUrl',
      width: 200,
      edit: true,
      editRule: true,
      editComponent: 'NInput',
    },
    {
      title: '联系人姓名',
      key: 'contactsName',
      edit: true,
      editRule: true,
      editComponent: 'NInput',
    },
    {
      title: '联系人手机',
      key: 'contactsPhone',
      edit: true,
      editRule: (text, _) => { if (!reg_tel.test(text)) return '手机号格式错误' },
      editComponent: 'NInput',
    },
    {
      title: '状态',
      key: 'status',
      render(row) {
        return h(NSwitch, {
          value: row.status === 1 ? true : false,
          onClick: () => switchStatus(row),
        });
      },
    },
  ]
}

export function createActions(record, {handleSave, handleEdit, handleDelete, handleCancel}) {
  if (!record.editable) {
    return [
      {
        label: '删除',
        type: 'error',
        // 配置color会覆盖type
        color: 'red',
        icon: DeleteOutlined,
        onClick: handleDelete.bind(null, record)
      },
      {
        label: '编辑',
        type: 'primary',
        icon: EditOutlined,
        onClick: handleEdit.bind(null, record)
      }
    ];
  } else {
    return [
      {
        label: '保存',
        type: 'success',
        icon: SaveOutlined,
        onClick: handleSave.bind(null, record),
      },
      {
        label: '取消',
        type: 'warning',
        icon: CloseSquareOutlined,
        onClick: handleCancel.bind(null, record),
      },
    ];
  }
}

页面使用

<template>
  <n-card :bordered="false" class="proCard table">
    <BasicTable
        :columns="columns"
        :request="loadDataTable"
        @edit-end="cellEditEnd"
        ref="actionRef"
        :actionColumn="actionColumn"
        :row-key="(row) => row.id"
        :scroll-x="1000" />
  </n-card>
</template>
<script setup>
import { h, reactive, ref, unref } from 'vue'
import { getHospSetPageList, deleteHospSet, batchRemoveHospSet, lockHospSet, updateHospSet } from '@/api/hospset'
import { BasicTable, TableAction } from '@/components/Table'
import { createListColumns, createActions } from './columns';
import { useDialog, useMessage } from 'naive-ui';

const dialog = useDialog()
const message = useMessage()
const actionRef = ref(null)

// 表格列属性
const columns = createListColumns({
  switchStatus: async (row) => {
    const { id, status } = row;
    const update = status === 1 ? 0 : 1;
    try {
      await lockHospSet(id, update)
      row.status = update;
    } catch (error) {
      row.status = status
    }
  },
});

// 表格操作列属性
const currentEditKeyRef = ref('');
const actionColumn = reactive({
  width: 140,
  title: '操作',
  key: 'action',
  fixed: 'right',
  align: 'center',
  render(record) {
    return h(TableAction, {
      showLabel: false,
      actions: createActions(record, { handleSave, handleEdit, handleDelete, handleCancel }),
    });
  },
});


// 数据请求
const loadDataTable = async (res) => {
  return await getHospSetPageList({ ...res });
}

// 刷新表格
function reloadTable() {
  actionRef.value.reload();
}

// 单元格编辑提交事件
const cellEditEnd = async ({ record, index, key, value }) => {
  const param = {
    id: record.id
  }
  param[key] = value
  try {
    await updateHospSet(param)
    message.success('保存成功')
  } catch (error) {
    console.log(error);
  }
}

// 整行编辑保存事件
const handleSave = async (record) => {
  const pass = await record.onEdit?.(false, true);
  if (pass) {
    currentEditKeyRef.value = '';
    const { id, hosname, hoscode, apiUrl, contactsName, contactsPhone } = record;
    // 提交更新
    try {
      await updateHospSet({ id, hosname, hoscode, apiUrl, contactsName, contactsPhone })
      message.success('保存成功')
    } catch (error) {
      console.log(error);
    }
  }
}

// 开启整行编辑事件
const handleEdit = (record) => {
  currentEditKeyRef.value = record.key;
  record.onEdit?.(true);
}

// 删除事件
const handleDelete = (record) => {
  dialog.info({
    title: '提示',
    content: `您想删除：${record.hosname}`,
    positiveText: '确定',
    negativeText: '取消',
    onPositiveClick: async () => {
      await deleteHospSet(record.id)
      reloadTable();
    },
    onNegativeClick: () => { },
  });
}

// 取消整行编辑事件
const handleCancel = (record) => {
  currentEditKeyRef.value = '';
  record.onEdit?.(false, false);
}
</script>

详细使用

详细的使用教程见：

https://docs.naiveadmin.com/components/table.html

Naive Ui Admin | BasicTable 表格组件
