搜索界面使用Flutter自带的SearchDelegate组件实现,通过魔改实现如下效果:

  1. 搜素建议
  2. 搜索结果,支持刷新和加载更多
  3. IOS中文输入拼音问题

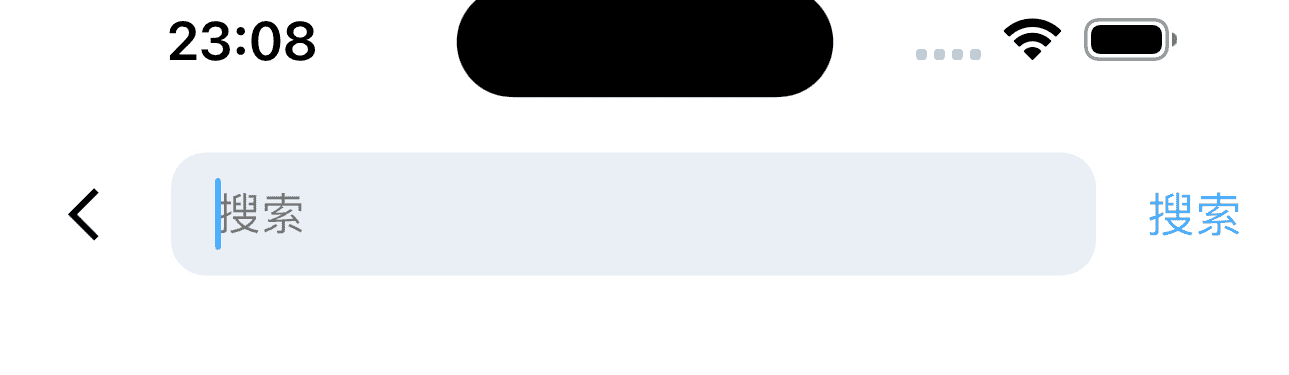

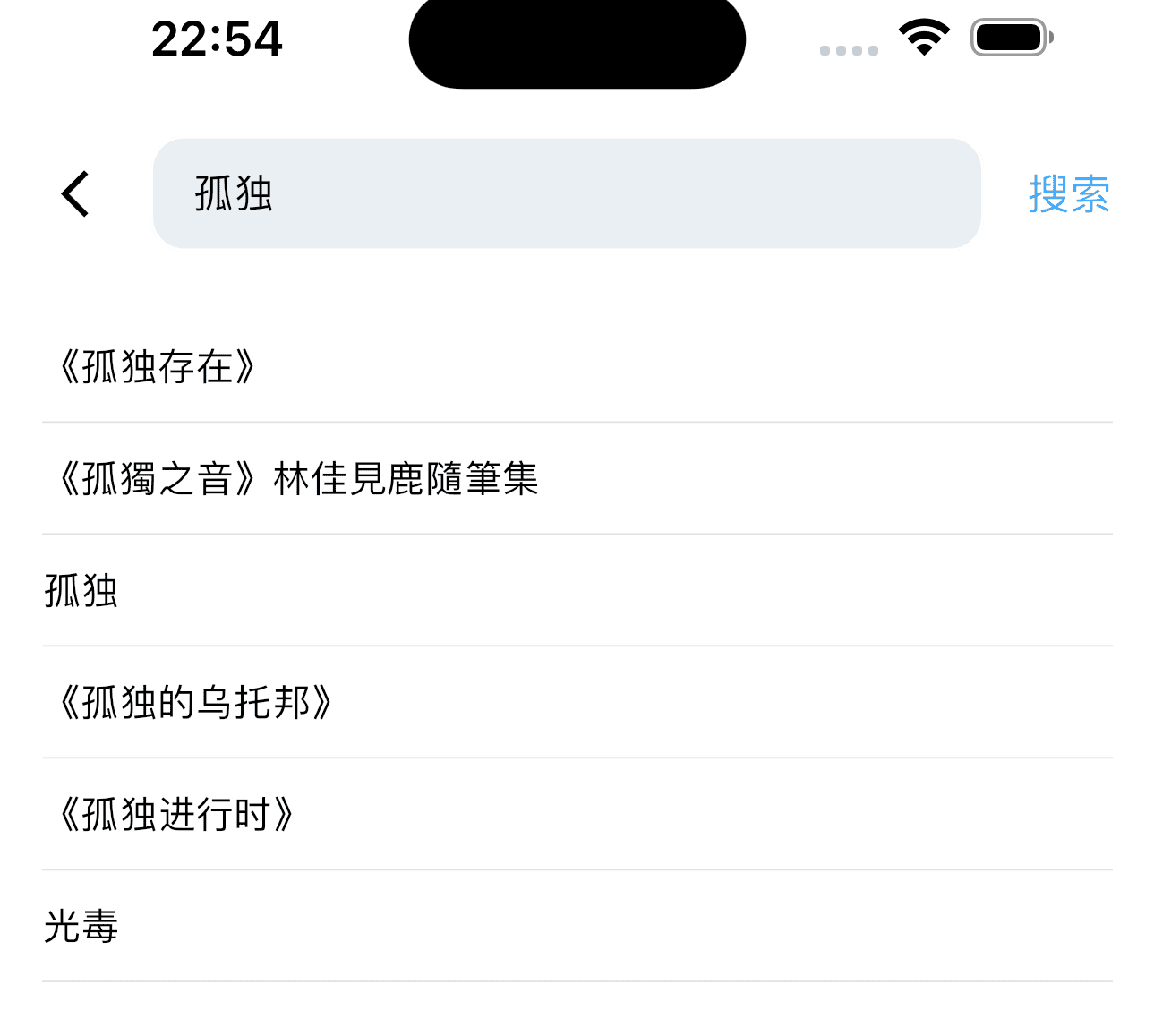

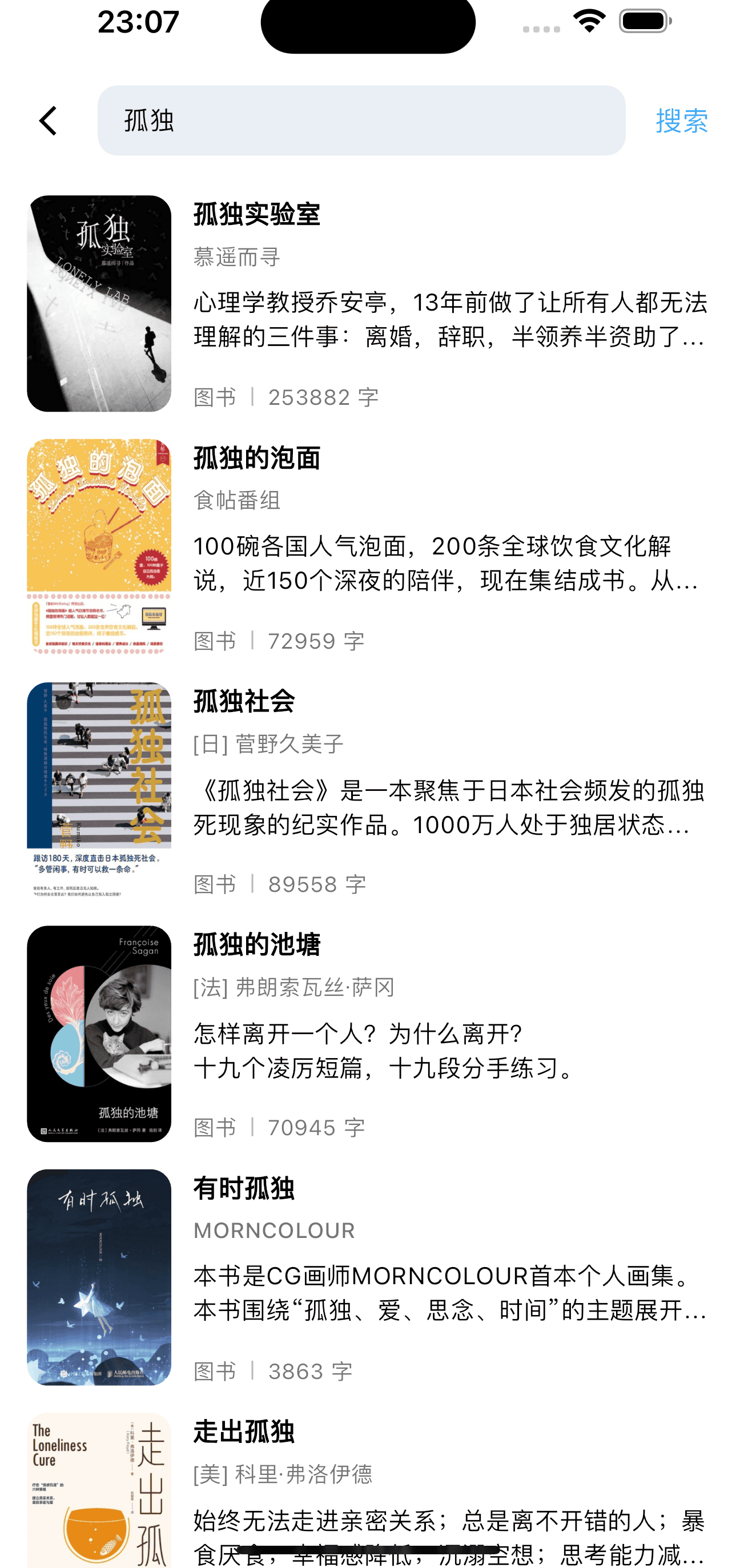

界面预览

拷贝源码

将SearchDelegate的源码拷贝一份,修改内容如下:

import 'package:flutter/material.dart';
import 'package:flutter/services.dart';

/// 修改此处为 showMySearch
Future<T?> showMySearch<T>({
required BuildContext context,
required MySearchDelegate<T> delegate,
String? query = '',
bool useRootNavigator = false,
}) {
delegate.query = query ?? delegate.query;
delegate._currentBody = _SearchBody.suggestions;
return Navigator.of(context, rootNavigator: useRootNavigator)
.push(_SearchPageRoute<T>(
delegate: delegate,
));
}

/// https://juejin.cn/post/7090374603951833118
abstract class MySearchDelegate<T> {
MySearchDelegate({
this.searchFieldLabel,
this.searchFieldStyle,
this.searchFieldDecorationTheme,
this.keyboardType,
this.textInputAction = TextInputAction.search,
}) : assert(searchFieldStyle == null || searchFieldDecorationTheme == null);

Widget buildSuggestions(BuildContext context);

Widget buildResults(BuildContext context);

Widget? buildLeading(BuildContext context);

bool? automaticallyImplyLeading;

double? leadingWidth;

List<Widget>? buildActions(BuildContext context);

PreferredSizeWidget? buildBottom(BuildContext context) => null;

Widget? buildFlexibleSpace(BuildContext context) => null;

ThemeData appBarTheme(BuildContext context) {
final ThemeData theme = Theme.of(context);
final ColorScheme colorScheme = theme.colorScheme;
return theme.copyWith(
appBarTheme: AppBarTheme(
systemOverlayStyle: colorScheme.brightness == Brightness.dark
? SystemUiOverlayStyle.light
: SystemUiOverlayStyle.dark,
backgroundColor: colorScheme.brightness == Brightness.dark
? Colors.grey[900]
: Colors.white,
iconTheme: theme.primaryIconTheme.copyWith(color: Colors.grey),
titleTextStyle: theme.textTheme.titleLarge,
toolbarTextStyle: theme.textTheme.bodyMedium,
),
inputDecorationTheme: searchFieldDecorationTheme ??
InputDecorationTheme(
hintStyle: searchFieldStyle ?? theme.inputDecorationTheme.hintStyle,
border: InputBorder.none,
),
);
}

String get query => _queryTextController.completeText;

set query(String value) {
_queryTextController.completeText = value; // 更新实际搜索内容
_queryTextController.text = value; // 更新输入框内容
if (_queryTextController.text.isNotEmpty) {
_queryTextController.selection = TextSelection.fromPosition(
TextPosition(offset: _queryTextController.text.length));
}
}

void showResults(BuildContext context) {
_focusNode?.unfocus();
_currentBody = _SearchBody.results;
}

void showSuggestions(BuildContext context) {
assert(_focusNode != null,
'_focusNode must be set by route before showSuggestions is called.');
_focusNode!.requestFocus();
_currentBody = _SearchBody.suggestions;
}

void close(BuildContext context, T result) {
_currentBody = null;
_focusNode?.unfocus();
Navigator.of(context)
..popUntil((Route<dynamic> route) => route == _route)
..pop(result);
}

final String? searchFieldLabel;

final TextStyle? searchFieldStyle;

final InputDecorationTheme? searchFieldDecorationTheme;

final TextInputType? keyboardType;

final TextInputAction textInputAction;

Animation<double> get transitionAnimation => _proxyAnimation;

FocusNode? _focusNode;

final ChinaTextEditController _queryTextController = ChinaTextEditController();

final ProxyAnimation _proxyAnimation =
ProxyAnimation(kAlwaysDismissedAnimation);

final ValueNotifier<_SearchBody?> _currentBodyNotifier =
ValueNotifier<_SearchBody?>(null);

_SearchBody? get _currentBody => _currentBodyNotifier.value;
set _currentBody(_SearchBody? value) {
_currentBodyNotifier.value = value;
}

_SearchPageRoute<T>? _route;

/// Releases the resources.
@mustCallSuper
void dispose() {
_currentBodyNotifier.dispose();
_focusNode?.dispose();
_queryTextController.dispose();
_proxyAnimation.parent = null;
}
}

/// search page.
enum _SearchBody {
suggestions,

results,
}

class _SearchPageRoute<T> extends PageRoute<T> {
_SearchPageRoute({
required this.delegate,
}) {
assert(
delegate._route == null,
'The ${delegate.runtimeType} instance is currently used by another active '
'search. Please close that search by calling close() on the MySearchDelegate '
'before opening another search with the same delegate instance.',
);
delegate._route = this;
}

final MySearchDelegate<T> delegate;

@override
Color? get barrierColor => null;

@override
String? get barrierLabel => null;

@override
Duration get transitionDuration => const Duration(milliseconds: 300);

@override
bool get maintainState => false;

@override
Widget buildTransitions(
BuildContext context,
Animation<double> animation,
Animation<double> secondaryAnimation,
Widget child,
) {
return FadeTransition(
opacity: animation,
child: child,
);
}

@override
Animation<double> createAnimation() {
final Animation<double> animation = super.createAnimation();
delegate._proxyAnimation.parent = animation;
return animation;
}

@override
Widget buildPage(
BuildContext context,
Animation<double> animation,
Animation<double> secondaryAnimation,
) {
return _SearchPage<T>(
delegate: delegate,
animation: animation,
);
}

@override
void didComplete(T? result) {
super.didComplete(result);
assert(delegate._route == this);
delegate._route = null;
delegate._currentBody = null;
}
}

class _SearchPage<T> extends StatefulWidget {
const _SearchPage({
required this.delegate,
required this.animation,
});

final MySearchDelegate<T> delegate;
final Animation<double> animation;

@override
State<StatefulWidget> createState() => _SearchPageState<T>();
}

class _SearchPageState<T> extends State<_SearchPage<T>> {
// This node is owned, but not hosted by, the search page. Hosting is done by
// the text field.
FocusNode focusNode = FocusNode();

@override
void initState() {
super.initState();
widget.delegate._queryTextController.addListener(_onQueryChanged);
widget.animation.addStatusListener(_onAnimationStatusChanged);
widget.delegate._currentBodyNotifier.addListener(_onSearchBodyChanged);
focusNode.addListener(_onFocusChanged);
widget.delegate._focusNode = focusNode;
}

@override
void dispose() {
super.dispose();
widget.delegate._queryTextController.removeListener(_onQueryChanged);
widget.animation.removeStatusListener(_onAnimationStatusChanged);
widget.delegate._currentBodyNotifier.removeListener(_onSearchBodyChanged);
widget.delegate._focusNode = null;
focusNode.dispose();
}

void _onAnimationStatusChanged(AnimationStatus status) {
if (status != AnimationStatus.completed) {
return;
}
widget.animation.removeStatusListener(_onAnimationStatusChanged);
if (widget.delegate._currentBody == _SearchBody.suggestions) {
focusNode.requestFocus();
}
}

@override
void didUpdateWidget(_SearchPage<T> oldWidget) {
super.didUpdateWidget(oldWidget);
if (widget.delegate != oldWidget.delegate) {
oldWidget.delegate._queryTextController.removeListener(_onQueryChanged);
widget.delegate._queryTextController.addListener(_onQueryChanged);
oldWidget.delegate._currentBodyNotifier
.removeListener(_onSearchBodyChanged);
widget.delegate._currentBodyNotifier.addListener(_onSearchBodyChanged);
oldWidget.delegate._focusNode = null;
widget.delegate._focusNode = focusNode;
}
}

void _onFocusChanged() {
if (focusNode.hasFocus &&
widget.delegate._currentBody != _SearchBody.suggestions) {
widget.delegate.showSuggestions(context);
}
}

void _onQueryChanged() {
setState(() {
// rebuild ourselves because query changed.
});
}

void _onSearchBodyChanged() {
setState(() {
// rebuild ourselves because search body changed.
});
}

@override
Widget build(BuildContext context) {
assert(debugCheckHasMaterialLocalizations(context));
final ThemeData theme = widget.delegate.appBarTheme(context);
final String searchFieldLabel = widget.delegate.searchFieldLabel ??
MaterialLocalizations.of(context).searchFieldLabel;
Widget? body;
switch (widget.delegate._currentBody) {
case _SearchBody.suggestions:
body = KeyedSubtree(
key: const ValueKey<_SearchBody>(_SearchBody.suggestions),
child: widget.delegate.buildSuggestions(context),
);
case _SearchBody.results:
body = KeyedSubtree(
key: const ValueKey<_SearchBody>(_SearchBody.results),
child: widget.delegate.buildResults(context),
);
case null:
break;
}

late final String routeName;
switch (theme.platform) {
case TargetPlatform.iOS:
case TargetPlatform.macOS:
routeName = '';
case TargetPlatform.android:
case TargetPlatform.fuchsia:
case TargetPlatform.linux:
case TargetPlatform.windows:
routeName = searchFieldLabel;
}

return Semantics(
explicitChildNodes: true,
scopesRoute: true,
namesRoute: true,
label: routeName,
child: Theme(
data: theme,
child: Scaffold(
appBar: AppBar(
leadingWidth: widget.delegate.leadingWidth,
automaticallyImplyLeading:
widget.delegate.automaticallyImplyLeading ?? true,
leading: widget.delegate.buildLeading(context),
title: TextField(
controller: widget.delegate._queryTextController,
focusNode: focusNode,
style: widget.delegate.searchFieldStyle ??
theme.textTheme.titleLarge,
textInputAction: widget.delegate.textInputAction,
keyboardType: widget.delegate.keyboardType,
onSubmitted: (String _) => widget.delegate.showResults(context),
decoration: InputDecoration(hintText: searchFieldLabel),
),
flexibleSpace: widget.delegate.buildFlexibleSpace(context),
actions: widget.delegate.buildActions(context),
bottom: widget.delegate.buildBottom(context),
),
body: AnimatedSwitcher(
duration: const Duration(milliseconds: 300),
child: body,
),
),
),
);
}
}

class ChinaTextEditController extends TextEditingController {
///拼音输入完成后的文字
var completeText = '';

@override
TextSpan buildTextSpan(
{required BuildContext context,
TextStyle? style,
required bool withComposing}) {
///拼音输入完成
if (!value.composing.isValid || !withComposing) {
if (completeText != value.text) {
completeText = value.text;
WidgetsBinding.instance.addPostFrameCallback((_) {
notifyListeners();
});
}
return TextSpan(style: style, text: text);
}

///返回输入样式,可自定义样式
final TextStyle composingStyle = style?.merge(
const TextStyle(decoration: TextDecoration.underline),
) ?? const TextStyle(decoration: TextDecoration.underline);
return TextSpan(style: style, children: <TextSpan>[
TextSpan(text: value.composing.textBefore(value.text)),
TextSpan(
style: composingStyle,
text: value.composing.isValid && !value.composing.isCollapsed
? value.composing.textInside(value.text)
: "",
),
TextSpan(text: value.composing.textAfter(value.text)),
]);
}
}

实现搜索

创建SearchPage继承MySearchDelegate,修改样式,实现页面。需要重写下面5个方法

  • appBarTheme:修改搜索样式
  • buildActions:搜索框右侧的方法
  • buildLeading:搜索框左侧的返回按钮
  • buildResults:搜索结果
  • buildSuggestions:搜索建议
import 'package:e_book_clone/pages/search/MySearchDelegate.dart';
import 'package:flutter/src/material/theme_data.dart';
import 'package:flutter/src/widgets/framework.dart';

class Demo extends MySearchDelegate {

@override
ThemeData appBarTheme(BuildContext context) {
// TODO: implement appBarTheme
return super.appBarTheme(context);
}

@override
List<Widget>? buildActions(BuildContext context) {
// TODO: implement buildActions
throw UnimplementedError();
}

@override
Widget? buildLeading(BuildContext context) {
// TODO: implement buildLeading
throw UnimplementedError();
}

@override
Widget buildResults(BuildContext context) {
// TODO: implement buildResults
throw UnimplementedError();
}

@override
Widget buildSuggestions(BuildContext context) {
// TODO: implement buildSuggestions
throw UnimplementedError();
}
}

修改样式

search_page.dart
@override
ThemeData appBarTheme(BuildContext context) {
final ThemeData theme = Theme.of(context);
final ColorScheme colorScheme = theme.colorScheme;
return theme.copyWith( // 使用copyWith,适配全局主题
appBarTheme: AppBarTheme( // AppBar样式修改
systemOverlayStyle: colorScheme.brightness == Brightness.dark
? SystemUiOverlayStyle.light
: SystemUiOverlayStyle.dark,
surfaceTintColor: Theme.of(context).colorScheme.surface,
titleSpacing: 0, // textfield前面的间距
elevation: 0, // 阴影
),
inputDecorationTheme: InputDecorationTheme(
isCollapsed: true,
hintStyle: TextStyle( // 提示文字颜色
color: Theme.of(ToastUtils.context).colorScheme.inversePrimary),
filled: true, // 填充颜色
contentPadding: EdgeInsets.symmetric(vertical: 10.h, horizontal: 15.w),
fillColor: Theme.of(context).colorScheme.secondary, // 填充颜色,需要配合 filled
enabledBorder: OutlineInputBorder( // testified 边框
borderRadius: BorderRadius.circular(12.r),
borderSide: BorderSide(
color: Theme.of(context).colorScheme.surface,
),
),
focusedBorder: OutlineInputBorder( // testified 边框
borderRadius: BorderRadius.circular(12.r),
borderSide: BorderSide(
color: Theme.of(context).colorScheme.surface,
),
),
),
);
}

@override
TextStyle? get searchFieldStyle => TextStyle(fontSize: 14.sp); // 字体大小设置,主要是覆盖默认样式

按钮功能

左侧返回按钮,右侧就放了一个搜索文本,点击之后显示搜索结果

search_page.dart
@override
Widget? buildLeading(BuildContext context) {
return IconButton(
onPressed: () {
close(context, null);
},
icon: Icon(
color: Theme.of(context).colorScheme.onSurface,
Icons.arrow_back_ios_new,
size: 20.r,
),
);
}

@override
List<Widget>? buildActions(BuildContext context) {
return [
Padding(
padding: EdgeInsets.only(right: 15.w, left: 15.w),
child: GestureDetector(
onTap: () {
showResults(context);
},
child: Text(
'搜索',
style: TextStyle(
color: Theme.of(context).colorScheme.primary, fontSize: 15.sp),
),
),
)
];
}

搜索建议

当 TextField 输入变化时,就会调用buildSuggestions方法,刷新布局,因此考虑使用FlutterBuilder管理页面和数据。

final SearchViewModel _viewModel = SearchViewModel();

@override
Widget buildSuggestions(BuildContext context) {
if (query.isEmpty) {
// 这里可以展示热门搜索等,有搜索建议时,热门搜索会被替换成搜索建议
return const SizedBox();
}
return FutureBuilder(
future: _viewModel.getSuggest(query),
builder: (BuildContext context, AsyncSnapshot<List<Suggest>> snapshot) {
if (snapshot.connectionState == ConnectionState.waiting) {
// 数据加载中
return const Center(child: CircularProgressIndicator());
} else if (snapshot.hasError) {
// 数据加载错误
return Center(child: Text('Error: ${snapshot.error}'));
} else if (snapshot.hasData) {
// 数据加载成功,展示结果
final List<Suggest> searchResults = snapshot.data ?? [];
return ListView.builder(
padding: EdgeInsets.all(15.r),
itemCount: searchResults.length,
itemBuilder: (context, index) {
return GestureDetector(
onTap: () {
// 更新输入框
query = searchResults[index].text ?? query;
showResults(context);
},
child: Container(
padding: EdgeInsets.symmetric(vertical: 10.h),
decoration: BoxDecoration(
border: BorderDirectional(
bottom: BorderSide(
width: 0.6,
color: Theme.of(context).colorScheme.surfaceContainer,
),
),
),
child: Text('${searchResults[index].text}'),
),
);
});
} else {
// 数据为空
return const Center(child: Text('No results found'));
}
},
);
}

实体类代码如下:

suggest.dart
class Suggest {
Suggest({
this.id,
this.url,
this.text,
this.isHot,
this.hotLevel,
});

Suggest.fromJson(dynamic json) {
id = json['id'];
url = json['url'];
text = json['text'];
isHot = json['is_hot'];
hotLevel = json['hot_level'];
}

String? id;
String? url;
String? text;
bool? isHot;
int? hotLevel;
}

ViewModel代码如下:

search_vm.dart
class SearchViewModel {
Future<List<Suggest>> getSuggest(String keyword) async {
if (keyword.isEmpty) {
return [];
}
return await JsonApi.instance().fetchSuggestV3(keyword);
}
}

搜索结果

我们需要搜索结果页面支持加载更多,这里用到了 SmartRefrsh 组件

flutter pub add pull_to_refresh

buildResults方法是通过调用showResults(context);方法刷新页面,因此为了方便数据动态变化,新建search_result_page.dart页面

search_result_page.dart
import 'package:e_book_clone/components/book_tile/book_tile_vertical/my_book_tile_vertical_item.dart';
import 'package:e_book_clone/components/book_tile/book_tile_vertical/my_book_tile_vertical_item_skeleton.dart';
import 'package:e_book_clone/components/my_smart_refresh.dart';
import 'package:e_book_clone/models/book.dart';
import 'package:e_book_clone/models/types.dart';
import 'package:e_book_clone/pages/search/search_vm.dart';
import 'package:e_book_clone/utils/navigator_utils.dart';
import 'package:flutter/material.dart';
import 'package:flutter_screenutil/flutter_screenutil.dart';
import 'package:provider/provider.dart';
import 'package:pull_to_refresh/pull_to_refresh.dart';

class SearchResultPage extends StatefulWidget {
final String query; // 请求参数
const SearchResultPage({super.key, required this.query});

@override
State<SearchResultPage> createState() => _SearchResultPageState();
}

class _SearchResultPageState extends State<SearchResultPage> {
final RefreshController _refreshController = RefreshController();
final SearchViewModel _viewModel = SearchViewModel();
void loadOrRefresh(bool loadMore) {
_viewModel.getResults(widget.query, loadMore).then((_) {
if (loadMore) {
_refreshController.loadComplete();
} else {
_refreshController.refreshCompleted();
}
});
}

@override
void initState() {
super.initState();
loadOrRefresh(false);
}

@override
void dispose() {
_viewModel.isDispose = true;
_refreshController.dispose();
super.dispose();
}

@override
Widget build(BuildContext context) {
return ChangeNotifierProvider<SearchViewModel>.value(
value: _viewModel,
builder: (context, child) {
return Consumer<SearchViewModel>(
builder: (context, vm, child) {
List<Book>? searchResult = vm.searchResult;
// 下拉刷新和上拉加载组件
return MySmartRefresh(
enablePullDown: false,
onLoading: () {
loadOrRefresh(true);
},
controller: _refreshController,
child: ListView.builder(
padding: EdgeInsets.only(left: 15.w, right: 15.w, top: 15.h),
itemCount: searchResult?.length ?? 10,
itemBuilder: (context, index) {
if (searchResult == null) {
// 骨架屏
return MyBookTileVerticalItemSkeleton(
width: 80.w, height: 120.h);
}
// 结果渲染组件
return MyBookTileVerticalItem(
book: searchResult[index],
width: 80.w,
height: 120.h,
onTap: (id) {
NavigatorUtils.nav2Detail(
context, DetailPageType.ebook, searchResult[index]);
},
);
},
),
);
},
);
},
);
}
}

MySmartRefresh组件代码如下,主要是对SmartRefresher做了进一步的封装

import 'package:flutter/material.dart';
import 'package:pull_to_refresh/pull_to_refresh.dart';

class MySmartRefresh extends StatelessWidget {
// 启用下拉
final bool? enablePullDown;

// 启用上拉
final bool? enablePullUp;

// 头布局
final Widget? header;

// 尾布局
final Widget? footer;

// 刷新事件
final VoidCallback? onRefresh;

// 加载事件
final VoidCallback? onLoading;

// 刷新组件控制器
final RefreshController controller;

final ScrollController? scrollController;

// 被刷新的子组件
final Widget child;

const MySmartRefresh({
super.key,
this.enablePullDown,
this.enablePullUp,
this.header,
this.footer,
this.onLoading,
this.onRefresh,
required this.controller,
required this.child,
this.scrollController,
});

@override
Widget build(BuildContext context) {
return _refreshView();
}

Widget _refreshView() {
return SmartRefresher(
scrollController: scrollController,
controller: controller,
enablePullDown: enablePullDown ?? true,
enablePullUp: enablePullUp ?? true,
header: header ?? const ClassicHeader(),
footer: footer ?? const ClassicFooter(),
onRefresh: onRefresh,
onLoading: onLoading,
child: child,
);
}
}

SearchViewModel 代码如下:

import 'package:e_book_clone/http/spider/json_api.dart';
import 'package:e_book_clone/models/book.dart';
import 'package:e_book_clone/models/query_param.dart';
import 'package:e_book_clone/models/suggest.dart';
import 'package:flutter/material.dart';

class SearchViewModel extends ChangeNotifier {
int _currPage = 2;
bool isDispose = false;
List<Book>? _searchResult;

List<Book>? get searchResult => _searchResult;

Future<List<Suggest>> getSuggest(String keyword) async {
if (keyword.isEmpty) {
return [];
}
return await JsonApi.instance().fetchSuggestV3(keyword);
}

Future getResults(String keyword, bool loadMore, {VoidCallback? callback}) async {
if (loadMore) {
_currPage++;
} else {
_currPage = 1;
_searchResult?.clear();
}

// 请求参数
SearchParam param = SearchParam(
page: _currPage,
rootKind: null,
q: keyword,
sort: "defalut",
query: SearchParam.ebookSearch,
);
// 请求结果
List<Book> res = await JsonApi.instance().fetchEbookSearch(param);

// 加载更多,使用addAll
if (_searchResult == null) {
_searchResult = res;
} else {
_searchResult!.addAll(res);
}

if (res.isEmpty && _currPage > 0) {
_currPage--;
}
// 防止Provider被销毁,数据延迟请求去通知报错
if (isDispose) return;
notifyListeners();
}
}

buildResults方法如下:

@override
Widget buildResults(BuildContext context) {
if (query.isEmpty) {
return const SizedBox();
}
return SearchResultPage(query: query);
}

显示搜索界面

注意调用的是我们自己拷贝修改的MySearchDelegate中的方法

onTap: () {
showMySearch(context: context, delegate: SearchPage());
},
